Why Can the Quotation for a Custom Aluminum Profile Die Range from Several Thousand to Tens of Thousands?

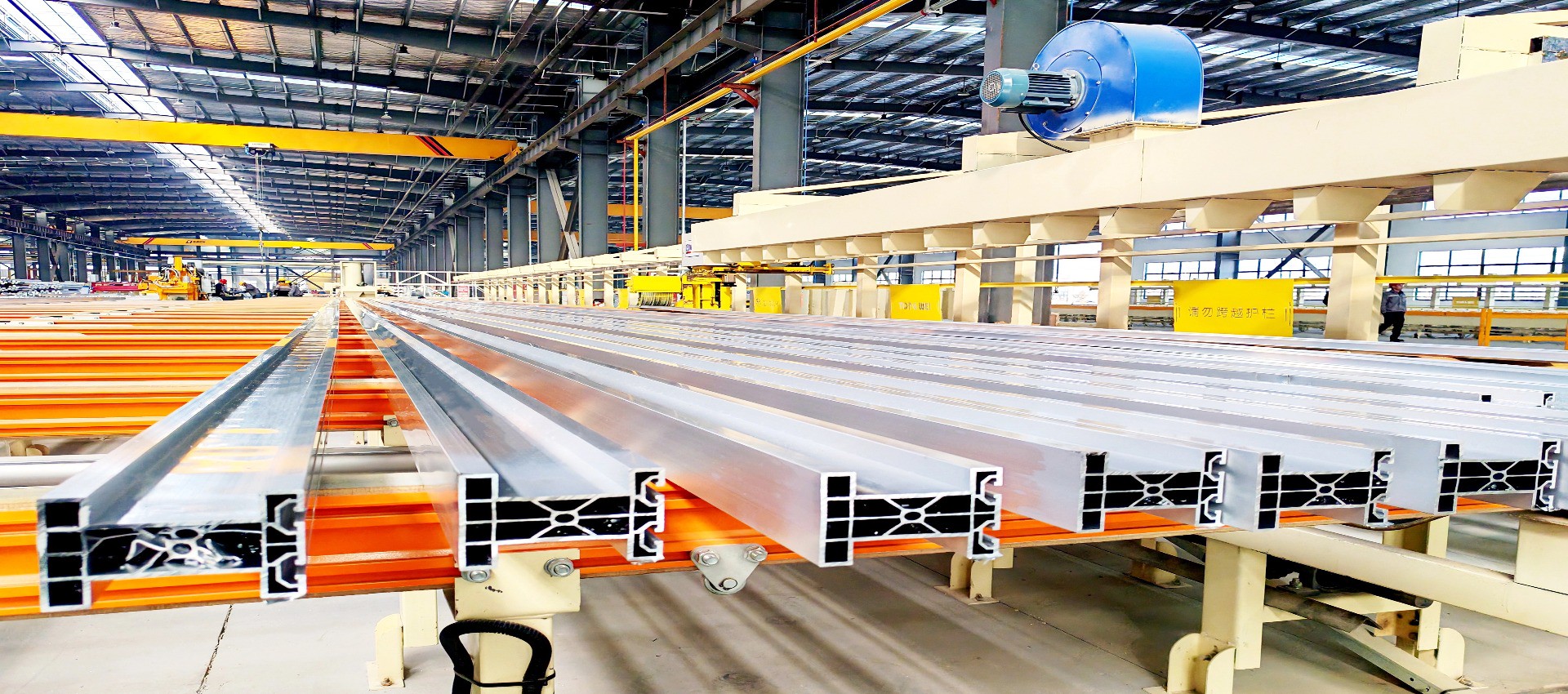

Purchasers who have handled custom aluminum profile die development have likely experienced this: the same product drawing is sent to several suppliers, yet the quotations may differ by several times. Some are only a few thousand yuan, while others reach tens of thousands or even more than one hundred thousand yuan. How exactly are the figures on the quotation calculated? Is there something suspicious behind the price differences?

As a purchaser, you naturally want to find a cost-effective solution, but you are even more worried about falling into a trap due to a lack of industry knowledge—either choosing a low-priced option that results in a short die life and large dimensional deviations in the extruded aluminum profile, making it unusable on the production line, or choosing a high-priced option without knowing what makes it more expensive and wasting your budget.

In fact, the pricing of custom aluminum profile die development follows a relatively transparent yet complex logic. Once you understand these key factors, you can not only understand the details behind the quotation, but also take the initiative to control costs during the requirements discussion stage and make better use of your budget.

1. Die Complexity: The “Largest Component” of Die Development Costs

The die is the first step in die development and a major component of the cost. The difficulty of die design and machining directly determines the price. Factors affecting die complexity include the following.

1. The Degree of Irregularity of the Cross-Sectional Shape

If the cross-section of an aluminum profile is simply rectangular, square, or a standard grooved shape, die machining is relatively easy and the cost is naturally lower. However, to meet specific structural strength or assembly requirements, many custom profiles are designed with irregular cross-sections—for example, with multiple slender cantilevers, enclosed internal cavities, significant wall-thickness variations, deep grooves, or thin-wall structures.

These complex cross-sections place higher demands on die machining accuracy, EDM wire-cutting paths, and subsequent die adjustment and correction. The more irregular the cross-section, the greater the difficulty of die design and manufacturing, and the higher the price.

2. Die Size and Weight

As the cross-sectional dimensions of the profile increase, the die blank size, die-core structure, and machining allowance must also be increased accordingly. Large dies not only have higher material costs, but also require more time for heat treatment, wire cutting, CNC machining, and other processes. Similarly, if the profile cross-section is particularly small, the die itself may not be large, but the machining accuracy requirements are instead higher, so the cost is not necessarily low.

3. Whether a Porthole Die Is Required

Industrial aluminum profile dies are divided into two types: solid dies and porthole dies. Solid dies have a simple structure and are used to extrude solid profiles, so they are relatively inexpensive. Porthole dies are used to extrude hollow profiles—profiles with internal cavities or passages, such as common 4040 and 6060 European-standard profiles, which have internal holes. A porthole die divides the aluminum billet into separate streams and then recombines them to form the profile. Its structure is complex and machining is more difficult, so its price is usually 2 to 3 times that of a solid die.

If your custom profile requires through-holes or internal cavities, a porthole die must be used, which naturally increases the die development cost.

2. Material Grade: More Expensive Is Not Always Better, but It Must Be Selected Carefully

Many people believe that die development costs are related only to the die itself. In fact, the grade of aluminum billet ultimately used for the profile also affects the quotation. Different grades require different extrusion process parameters and cause different levels of die wear.

Common industrial aluminum profiles are often made from 6063-T5 or 6061-T6 aluminum alloys. 6063 alloy has good extrusion performance, provides excellent surface-treatment results, and is widely used. 6061 alloy has higher strength, but is more difficult to extrude and causes faster die wear. If you specify 6061 or a higher-strength aerospace aluminum alloy such as 7075, the die life will be shorter. The supplier must allow for higher die maintenance costs, so the quotation will naturally increase.

Of course, high-strength materials are not required for every application. For many equipment frames, safety guards, and workbench structures, 6063-T5 is fully sufficient. Blindly pursuing a higher material grade only increases unnecessary die development costs. During discussions, purchasers can clearly state that higher grades should not be used unless necessary, allowing the supplier to recommend a more economical solution based on actual requirements.

3. Extrusion Difficulty: The Balance between Die Life and Yield Rate

After the die is completed, whether it can smoothly produce qualified profiles through extrusion is another important consideration. High extrusion difficulty means that the die is more likely to be damaged and the yield rate is lower, so the supplier must include these risks in the quotation.

1. Wall Thickness and Wall-Thickness Ratio

The biggest challenge in aluminum profile extrusion is thin-wall structures. If the wall thickness in certain areas of the profile is particularly small—for example, less than 1.5mm—the aluminum flow encounters greater resistance and moves more slowly through those areas, making defects such as incomplete filling and cracking more likely. Thin-wall areas also cause more severe die wear. To control the risks, the supplier may need to use a slower extrusion speed, a higher die temperature, or even increase the number of nitriding treatments for the die. All of these measures increase costs.

2. Ratio of Cross-Sectional Perimeter to Cross-Sectional Area

This ratio determines the proportion of surface area in the profile. The higher the ratio, the greater the surface area and the lower the amount of solid material. During extrusion, heat dissipates faster and aluminum flowability is poorer, making forming problems more likely. For such profiles, the supplier needs to adjust the extrusion process and may even need to design a more complex die cooling system, naturally resulting in a higher quotation.

3. Dimensional Accuracy Requirements

Some custom profiles have particularly strict dimensional tolerance requirements—for example, mating surfaces must achieve zero-clearance assembly, or the groove width and positional accuracy must be controlled within ±0.1mm. The higher the accuracy requirements, the higher the costs of die machining, die corrections, and in-line inspection during extrusion. Suppliers usually provide quotations based on two levels: standard accuracy and high accuracy. High-accuracy profiles are usually priced 20% to 50% higher.

4. Surface Treatment: The “Hidden” Cost of Subsequent Processes

Many purchasers focus only on die and extrusion costs during the quotation stage and overlook the cost differences caused by surface treatment. In fact, surface treatment is not merely a matter of appearance; it also directly affects corrosion resistance, wear resistance, and assembly accuracy.

The most common surface-treatment methods include:

• Anodizing (natural/silver-white/black): This is relatively standard and moderately priced, but the oxide-film thickness, color consistency, and sealing quality all affect the price. If hard anodizing or colored anodizing is required, the cost will be higher.
• Powder coating/fluorocarbon coating: These are used for outdoor equipment requiring specific colors and good weather resistance. The coating process has high pretreatment requirements, and there can also be a significant price difference between a single coating and a two-coat application.
• Electrophoretic coating: This is suitable for applications requiring high gloss and high corrosion resistance, such as medical instruments and food-processing equipment. The electrophoretic coating process is relatively costly, mainly because of environmental-protection treatment expenses and yield-rate issues.

If you have no specific surface-treatment requirements, the supplier will usually quote a price for a mill-finish profile, meaning an untreated profile, and then ask whether anodizing is required. However, if you specify the surface-treatment requirements during the die development stage, the supplier can plan the die draft angle and surface roughness in advance, avoiding dimensional deviations caused by surface treatment at a later stage. Therefore, specifying the surface-treatment method during the quotation stage can actually help prevent later price increases.

5. Die “Life” and “Maintenance”

Die life is also an important factor affecting the quotation. Suppliers usually quote based on the number of extrusion meters the die can produce. For example, a die capable of extruding 30,000 meters of profile will certainly be priced differently from one capable of extruding only 10,000 meters.

Many factors affect die life, including cross-sectional complexity, wall-thickness uniformity, die material grade, heat-treatment process, and lubrication conditions during extrusion. To offer a lower price, some suppliers may use less expensive die steel or simplify the heat-treatment process, resulting in a short die life, easy deformation, and unstable profile dimensions during extrusion. Although you may save on the initial die development fee, you may ultimately incur higher costs during subsequent batch extrusion because of frequent die repairs and replacements.

Therefore, when comparing quotations, do not focus only on the “die development fee.” Ask about the expected die life and maintenance cycle. A more reasonable approach is to evaluate the die cost together with the subsequent extrusion unit price.

6. Suppliers’ “Hidden Costs” and Quotation Strategies

In addition to the technical factors mentioned above, supplier quotations also include certain “hidden costs”:

• Design communication costs: If your drawings are incomplete, or if the supplier needs to help modify the cross-sectional design or optimize the structure, these design services will also be included in the quotation.
• Sampling and die-correction costs: Die trials are usually required after die development, and formal production can begin only after the trial is successful. If the profile shows significant dimensional deviations after the trial, the die must be corrected. The number and cost of corrections should also be confirmed in advance. Some suppliers quote a lump sum that includes two die corrections, while others charge by occurrence.
• Order volume and lead time: If your order volume is small and the lead time is urgent, the supplier may need to prioritize production and adjust the production schedule, which can also generate additional costs.

A more practical suggestion is to clearly state your requirements when requesting a quotation, including the profile cross-sectional drawing, dimensional tolerance requirements, wall thickness, surface treatment, expected usage, and lead-time requirements. The more transparent the information, the more accurate the supplier’s quotation will be, and the less likely you are to fall into a “low-price trap.”

7. A Real-World Case Reference

We previously worked with a purchaser responsible for automation equipment frames who needed to develop a custom 6060 profile. The cross-section included T-slots and internal reinforcing ribs, the thinnest wall section was only 1.8mm, and high-precision fitting was required. During the initial quotation process, one supplier quoted a die fee of 12,000 yuan, another quoted 28,000 yuan, and a third quoted 45,000 yuan.

After communication, the 12,000-yuan quotation corresponded to a solution with no die correction, no sampling, and a die life of 10,000 meters. The 45,000-yuan quotation included two die corrections, one sample confirmation, a die life of 50,000 meters, and dimensional inspection services during subsequent extrusion. Ultimately, the customer chose the middle option—28,000 yuan—which included one die correction and a die life of 30,000 meters, with a relatively reasonable subsequent extrusion unit price. This solution achieved a balance between cost and service life.

In fact, when Shanghai Xiangda Industrial Aluminum Profile Co., Ltd. receives this type of custom die-development requirement, we also prioritize clarifying the cross-sectional structure, accuracy requirements, and expected usage with the customer to avoid quotation deviations caused by information asymmetry at a later stage. For example, for our XD-10-6060W profile, we optimized the wall thickness and T-slot fitting accuracy during the initial development stage, ensuring a good extrusion yield while controlling die costs.

Finally, Several Suggestions for Purchasers

Large price differences in custom aluminum profile die development are an objective fact, but they are not without logic. In summary, the key points are:

1. Define requirements clearly and reduce ambiguity: The more detailed the cross-sectional drawing, tolerances, wall thickness, surface treatment, and usage volume, the better.
2. Evaluate comprehensively rather than looking only at the die development fee: Die life, number of die corrections, extrusion unit price, and lead time should all be taken into consideration.
3. Select the material grade appropriately: If 6063 can meet the requirements, do not use 6061. Avoid paying for unnecessary strength.
4. Discuss surface treatment in advance: Specify it during the die development stage to avoid rework caused by dimensional deviations at a later stage.
5. Ask one more “why”: When faced with quotations that differ greatly, asking the supplier to explain the basis for its pricing is more valuable than blindly forcing down the price.

Once you understand these factors, you will find that the figures on a quotation are no longer incomprehensible; they represent a cost structure that can be quantified, compared, and optimized. The next time you face a quotation for custom aluminum profile die development, you will at least know what to ask, what to review, and what to pay attention to.
